Hand operated

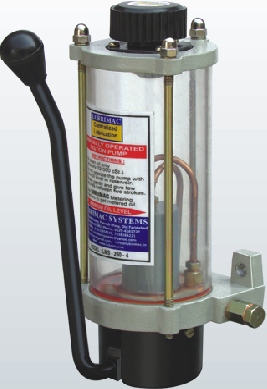

H-7
Oil pump without reservoir. Check valve at suction, optional relief valve. Outlet M10×1.
7 cc/stroke · 12 kg/cm² · Ø36h8 inlet
Full catalog
Every Lubrimac product
from the brochure.
Hand pumps to dual-line grease, fittings, timers and spares — complete model list as printed in the catalog.
Aluminium reservoir

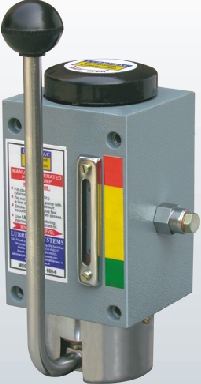

H-250-4
Piston pump, body as reservoir. Relief valve against overload. Outlet on right unless specified.
0.25 Ltr · 4 cc/stroke · 12 kg/cm²
Aluminium reservoir
H-600-6
Manual piston pump for medium point counts. Suction check valve and relief valve fitted.
0.60 Ltr · 6 cc/stroke · 12 kg/cm²
Aluminium reservoir
H-1700-10
Largest aluminium-reservoir hand pump in the range.
1.70 Ltr · 10 cc/stroke · 12 kg/cm²
Transparent reservoir
H-250-4A
Clear reservoir with oil window. Also tagged LMS-250-4 on some units.
0.25 Ltr · 4 cc/stroke · 12 kg/cm²
Transparent reservoir
H-600-6A
See-through reservoir, 6 cc per stroke. Outlet M10×1.
0.60 Ltr · 6 cc/stroke · 12 kg/cm²
Transparent reservoir
H-1000-8A
1 litre transparent unit (catalog also lists H-1000-10A). Oil window, top and bottom covers.
1.00 Ltr · 8 cc/stroke · 12 kg/cm²
Automatic
ALR-02
Compact 2 litre automatic unit. Rotary pump, 230V single phase. Pressure/float switch N/A as standard.
2 Ltr · 0.5 LPM · 0.10 kW · 12 kg/cm²
Automatic
ALR-03
3 litre automatic system, 230V AC single phase, optional switches.
3 Ltr · 1.0 LPM · 0.10 kW · 12 kg/cm²
Automatic
CLU-03
3 litre, 415V 4-pole 3-phase motor. Relief, gauge, filler-breather, suction strainer.
3 Ltr · 1.0 LPM · 0.09 kW · 12 kg/cm²
Transparent reservoir
SLU-2700-S
2.7 litre automatic, 230V single phase. Transparent reservoir option.
2.7 Ltr · 1.0 LPM · 0.10 kW · 12 kg/cm²
Automatic
SLU-2700
2.7 litre automatic, 415V 3-phase. Same family as SLU-2700-S.
2.7 Ltr · 1.0 LPM · 0.09 kW · 12 kg/cm²
Automatic
CLU-05
5 litre system for more lubrication points. Optional 24V/220V pressure and float switches.
5 Ltr · 1.0 LPM · 0.18 kW · 15 kg/cm²
Automatic
CLU-08
8 litre automatic oil unit, 3-phase 4-pole motor.
8 Ltr · 2.0 LPM · 0.18 kW · 15 kg/cm²
High capacity

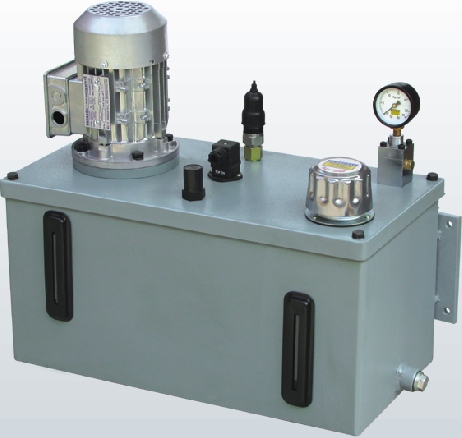

CLU-20
Plant-scale oil system. Viscosity 50–1000 cSt. Vertical float switch on request.
20 Ltr · 3.0 LPM · 0.18 kW · 20 kg/cm²
High capacity
CLU-30
Largest standard automatic oil unit in the catalog.
30 Ltr · 4.0 LPM · 0.37 kW · 20 kg/cm²
Motorised
Motorised Lubrication Unit
Intermittent lubrication under pressure. Use Lubrimac metering injectors. Clean oil 32–500 cSt.
Max 15 kg/cm² · anti-clockwise motor
Flange · gerotor

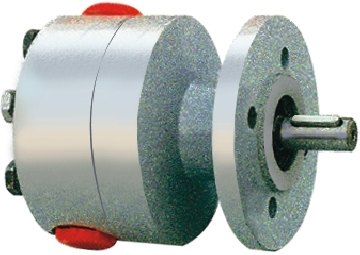

Flange rotary pumps PP-0.5 to PP-16
Positive displacement. Non-reversible (one direction) or reversible (CW/CCW). BSP ports.
0.5 / 1 / 3 / 6 / 10 / 16 LPM at 1500 RPM
Insert type

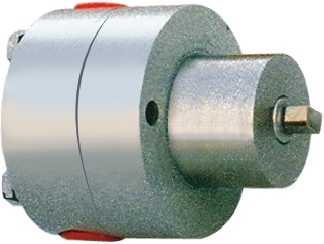

Insert rotary pumps PP-1 to PP-10
Compact insert construction for OEM machine builders. Non-reversible or reversible.
1 / 3 / 6 / 10 LPM · 1/4 to 3/8 BSP
Motor pump assembly

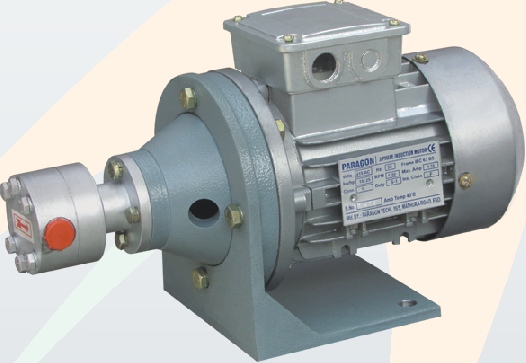

MPA-1
Continuous / circulation duty. Suction 2 ft down, delivery up to 10 ft. Flange-mounted motor.
1 LPM · 15 kg/cm² · 0.25 HP 415V 1500 rpm
Motor pump assembly
MPA-3
3 litres per minute circulation package.
3 LPM · 15 kg/cm² · 0.25 HP 415V 1500 rpm
Motor pump assembly
MPA-6
Higher flow motor-pump for free-flow oil circuits.
6 LPM · 10 kg/cm² · 0.50 HP 415V 1500 rpm
Motor pump assembly
MPA-10
Largest standard MPA in the catalog.
10 LPM · 10 kg/cm² · 0.50 HP 415V 1500 rpm
Manual grease

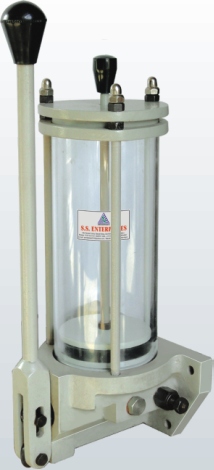

MGP-500-3
Hand-operated piston grease pump. Tell-tale rod, grease filling nipple, 1/4" BSP outlet.
0.5 kg · 3 g/stroke · 70 kg/cm²
Manual grease
MGP-1000-4
1 kg reservoir manual grease pump.
1.0 kg · 4 g/stroke · 100 kg/cm²
Manual grease
MGP-1500-6
1.5 kg reservoir, highest pressure in the MGP range.
1.5 kg · 6 g/stroke · 120 kg/cm²
Multi-line radial
RL-1.5-4
Soft grease or thick oil to multiple points. Dose 0.05–0.25 cc/stroke/pump. Drive 70:1.
1.5 kg · 4 outlets · 0.25 HP · 200 kg/cm² max
Multi-line radial
RL-5-6
Cement, sugar, textile, rubber, presses and hammers.
5 kg · 6 outlets · 0.25 HP
Multi-line radial

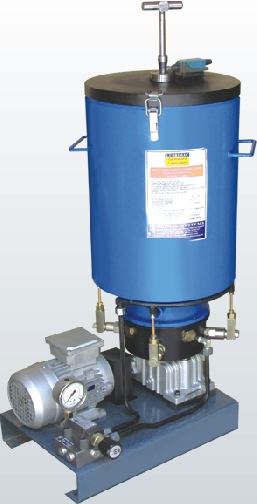

RL-15-12
12 pumping elements. Limit switch and tell-tale rod optional.
15 kg · 12 outlets · 0.50 HP
Multi-line radial
RL-30-20
20 outlets. Do not plug unused pumping units. Keep reservoir filled to avoid air.
30 kg · 20 outlets · 1.00 HP
Multi-line radial
RL-70-30
Largest radial lubricator. Outlet count and reservoir as per requirement.
70 kg · 30 outlets · 1.50 HP
Dual line
DGL-30
Long-distance high-pressure grease. Steel, cement, turbines, furnaces, sponge iron, sugar.
30 kg · 250 g/min · 250 kg/cm² · NLGI I/II
Dual line
DGL-50
Change-over valve, end pressure relay, dose feeders, in-line filter, control panel.
50 kg · 250 g/min · 250 kg/cm²
Dual line
DGL-70
70 kg reservoir dual-line pumping station.
70 kg · 250 g/min · 250 kg/cm²
Dual line
DGL-100
100 kg dual-line station for the largest layouts.
100 kg · 250 g/min · 250 kg/cm²
Pneumatic

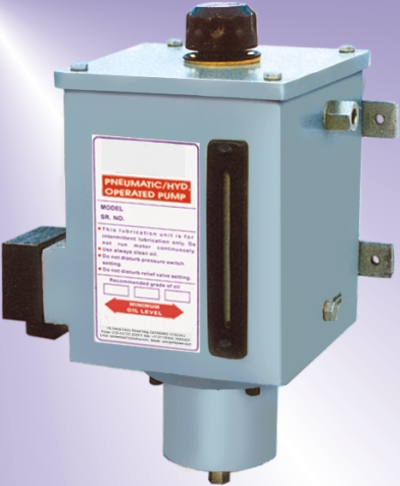

Pneumatic / hyd. operated pump
Air cylinder built into pump housing. Grease to NLGI-2 via progressive blocks. Adjustable discharge.
Filter-regulator on air line required
Pneumatic

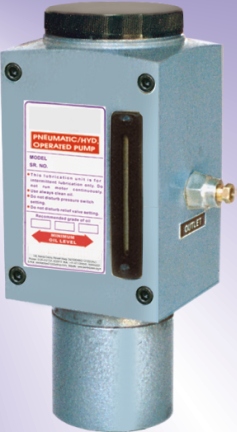

Pneumatic pump — multiport
Adjustable discharge per port. Reservoir and output as per customer requirement.
Bleed plug for air removal
Packaged
Panelised lubrication station
Enclosure with reservoir, flow adjustment and indication for intermittent oil systems.
Custom schemes on request
Packaged

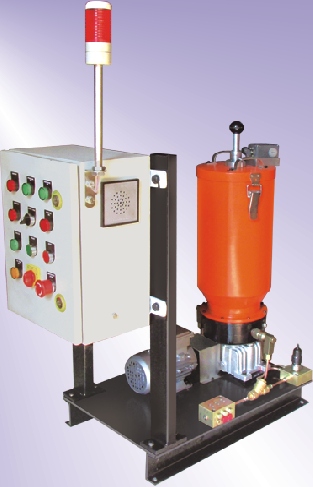

Control-panel grease package
Panel, reservoir and pump on a compact base for shop-floor greasing.
Indicator lamps and E-stop
Hand mobile

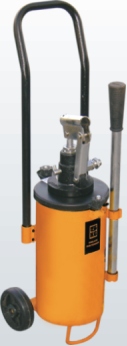

HGS-5
Mobile grease filling with rubber hose and adapter. Pressure plate avoids air gap.
5 kg · 8 g/stroke · 100 kg/cm²
Hand mobile
HGS-10
Remove pressure plate before filling, refit after filling.
10 kg · 10 g/stroke · 125 kg/cm²
Hand mobile
HGS-20
20 kg trolley filler for pressurised greasing of machine parts.
20 kg · 10 g/stroke · 150 kg/cm²
Air mobile
GFS-25
Trolley-mounted air-operated filler with rubber hose and grease gun.
25 kg · 300–400 g/min · 125 kg/cm²
Air mobile
GFS-50
50 kg air-operated mobile filling system.
50 kg · 300–400 g/min · 125 kg/cm²
Air · drum

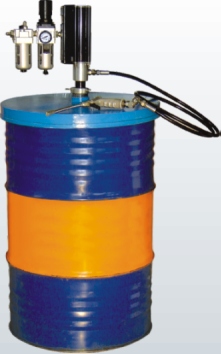

GFS-200
For 200 kg drums. Drum not included. High-discharge grease transfer.
200 kg drum · 300–400 g/min · 150 kg/cm² · air 5–7 kg/cm²
Electronic timer
ET-5-120
Wall / panel mounting. ON time 5 sec fixed. OFF 2–128 min adjustable.
Times also available as required
Electronic timer
ET-30-60
Wall / panel mounting. ON 2–30 sec adjustable. OFF 2–60 min adjustable.
ON/OFF both variable
Controller
ECW 2-240
Wall mounting. Lubrication fault and low oil level sensing. ON 5 sec fixed, OFF 2–240 min.
2, 4, 8, 15, 30, 60, 120, 240 min
Controller
ECP 2-240
Panel mounting controller with pressure and low-oil indicators.
ON 5 sec · OFF 2–240 min
Controller
ECP 2-240+C
Panel mounting with built-in contactor.
Same timing as ECP 2-240
Manifolds
M-1 to M-8 · M-1A to M-4A
Mount oil distributors. Two 6 mm OD tube ports, side outlets M8×1 or M10×1.
L 35–175 mm · thickness 15 or 22 mm
Metering
D-1 cartridge
Metered oil to each point. Min. 1 minute recharge. Brass or M.S. M8×1.
0.01 / 0.03 / 0.05 / 0.10 / 0.16 cc per stroke
Metering
D-2 cartridge
Medium dosage injector.
0.25 / 0.40 cc per stroke
Metering

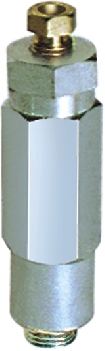

D-3 cartridge
High dosage injector. M10×1.
1.0 / 1.60 cc per stroke
Hoses

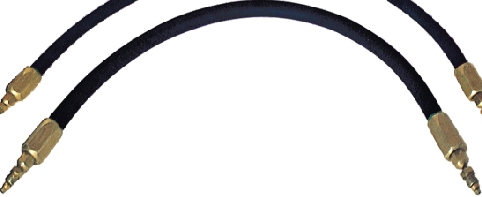

Hose 4/6 mm steel ends
Where flexibility and strength are both required. Length as required.
OD 13 mm · ID 6.3 mm · 28–200 kg/cm²
Steel tube
ST-4 / ST-6
Copper-coated. 6 mm main line, 4 mm secondary line.
ST-4: OD 4 / ID 2.6 · ST-6: OD 6 / ID 4.6
Nylon tube
NT-4 / NT-6
Nylon-6, natural or transparent. For moving lubrication points.
NT-4: OD 4 / ID 2 · NT-6: OD 6 / ID 4
Protection
Mechanical protection spring
Guards 4 mm and 6 mm nylon tube from hot chips, heat and friction.
For NT-4 and NT-6
Fittings
Straight connectors FSC
4 mm and 6 mm OD. Metric and BSP, taper where marked T.
FSC-4/M6×1 to FSC-6/1/4" BSP — 10 models
Fittings
Elbows FE
90° tube elbows, taper threads where marked T.
FE-4T and FE-6T — 10 models
Fittings
Connector blocks FCB
15 mm thick blocks, Ø5.2 mounting hole.
FCB-4 · FCB-6
Fittings
Elbow blocks FEB
L-shaped 15 mm blocks.
FEB-4 · FEB-6
Fittings
Tee blocks FT
T-blocks for 4 mm and 6 mm tube.
FT-4 · FT-6
Fittings
Cross blocks FCR
Four-way 15 mm blocks.
FCR-4 · FCR-6
Fittings
Banjo 4 mm / 6 mm
Banjo with seal ring. Metric and BSP.
FB-4 (4 models) · FB-6 (4 models)
Fittings
Clamps
1, 2 or 3 tube clamps.
C-4-1/2/3 · C-6-1/2 · C-10-1
Fittings
Plugs
With matching sealing washer.
P-8 · P-10 · P-1/4" BSP · P-1/2" BSP
Fittings
Locking screws LS
For 4 mm and 6 mm tube.
LS-4 M8×1 · LS-6 M10×1
Fittings
Locking cone (ferule)
Brass or aluminium / M.S.
LC-4 Brass · LC-6 Brass · LC-10 Al./M.S.
Spares
Float switch
Low oil level sensing. 24V / 220V, NO or NC contacts.
Spares
Pressure switch
24V / 220V, 1 NO+1 NC / NO or NC, pressure preset.
Spares
Pressure gauge
Line pressure indication on automatic units.
Spares
Oil filler cum air breather
Fill point with breather for reservoirs.
Spares
Suction strainer
Protects the pump from particles in the tank.
Spares
Relief valve
Safeguards the pump from overloading.
Spares
In-line filter
For dual-line and automatic oil circuits.
Spares
Sight glass
Vertical visual oil-level window.
Spares
Oil level gauge
Bar-type level gauge for reservoirs.
Spares
Dual line blocks
Dose feeders for dual-line grease systems.
Spares
Progressive blocks
Distribution for pneumatic grease pumps.
Spares

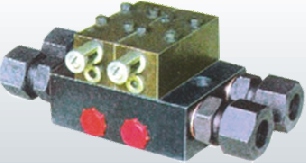

Plunger pumps
Pumping elements for radial lubricators.
Catalog tables
Hand operated pumps
Manually operated piston pumps. Body used as reservoir (except H-7). Check valve at suction, relief valve against overload.
| Model | Reservoir | Discharge | Pressure | Type |
|---|---|---|---|---|
| H-7 | None | 7 cc/stroke | 12 kg/cm² | Without reservoir |
| H-250-4 | 0.25 Ltr | 4 cc/stroke | 12 kg/cm² | Aluminium |
| H-600-6 | 0.60 Ltr | 6 cc/stroke | 12 kg/cm² | Aluminium |
| H-1700-10 | 1.70 Ltr | 10 cc/stroke | 12 kg/cm² | Aluminium |
| H-250-4A | 0.25 Ltr | 4 cc/stroke | 12 kg/cm² | Transparent* |
| H-600-6A | 0.60 Ltr | 6 cc/stroke | 12 kg/cm² | Transparent* |
| H-1000-8A | 1.00 Ltr | 8 cc/stroke | 12 kg/cm² | Transparent* |
Outlet on right unless specified. Outlet M10×1. *Transparent reservoir.
Automatic lubrication systems
Rotary pump coupled to motor. Relief / bleed valve, pressure & float switches, gauges, filler-breather, suction strainer. Oil 50–1000 cSt.
| Model | Reservoir | Discharge | Motor | Pressure |
|---|---|---|---|---|
| ALR-02 | 2 Ltrs | 0.5 LPM | 0.10 kW, 230V 1-ph | 12 kg/cm² |
| ALR-03 | 3 Ltrs | 1.0 LPM | 0.10 kW, 230V 1-ph | 12 kg/cm² |
| CLU-03 | 3 Ltrs | 1.0 LPM | 0.09 kW, 415V 3-ph 4-pole | 12 kg/cm² |
| SLU-2700-S | 2.7 Ltrs | 1.0 LPM | 0.10 kW, 230V 1-ph | 12 kg/cm² |
| SLU-2700 | 2.7 Ltrs | 1.0 LPM | 0.09 kW, 415V 3-ph 4-pole | 12 kg/cm² |
| CLU-05 | 5 Ltrs | 1.0 LPM | 0.18 kW, 415V 3-ph 4-pole | 15 kg/cm² |
| CLU-08 | 8 Ltrs | 2.0 LPM | 0.18 kW, 415V 3-ph 4-pole | 15 kg/cm² |
| CLU-20 | 20 Ltrs | 3.0 LPM | 0.18 kW, 415V 3-ph 4-pole | 20 kg/cm² |
| CLU-30 | 30 Ltrs | 4.0 LPM | 0.37 kW, 415V 3-ph 4-pole | 20 kg/cm² |
Electronic timers & controllers
| Model | Mounting | ON | OFF | Notes |
|---|---|---|---|---|
| ET-5-120 | Wall / panel | 5 sec fixed | 2–128 min adj. | Timer |
| ET-30-60 | Wall / panel | 2–30 sec adj. | 2–60 min adj. | Timer |
| ECW 2-240 | Wall | 5 sec fixed | 2–240 min adj. | Fault & low oil |
| ECP 2-240 | Panel | 5 sec fixed | 2–240 min adj. | Fault & low oil |
| ECP 2-240+C | Panel | 5 sec fixed | 2–240 min adj. | Built-in contactor |
Flange rotary pumps (1500 RPM)
| Model | Discharge | Port W |
|---|---|---|
| PP-0.5 | 0.5 LPM | 1/8" BSP |
| PP-1 | 1 LPM | 1/4" BSP |
| PP-3 | 3 LPM | 1/4" BSP |
| PP-6 | 6 LPM | 1/4–3/8" BSP |
| PP-10 | 10 LPM | 1/4–3/8" BSP |
| PP-16 | 16 LPM | 1/2" BSP |
Insert type also in PP-1, PP-3, PP-6, PP-10. Non-reversible or reversible.
Motor pump assembly
| Model | Discharge | Max. pressure | Motor |
|---|---|---|---|
| MPA-1 | 1 LPM | 15 kg/cm² | 0.25 HP, 415V, 1500 rpm |
| MPA-3 | 3 LPM | 15 kg/cm² | 0.25 HP, 415V, 1500 rpm |
| MPA-6 | 6 LPM | 10 kg/cm² | 0.50 HP, 415V, 1500 rpm |
| MPA-10 | 10 LPM | 10 kg/cm² | 0.50 HP, 415V, 1500 rpm |
Manifolds
| Model | L mm | A mm | Thick | Thread | D mm | Holes |
|---|---|---|---|---|---|---|
| M-1 | 35 | 18 | 15 | M8×1 | — | 1 |
| M-2 | 55 | 18 | 15 | M8×1 | — | 1 |
| M-3 | 75 | 18 | 15 | M8×1 | 40 | 2 |
| M-4 | 95 | 18 | 15 | M8×1 | 40 | 2 |
| M-5 | 115 | 18 | 15 | M8×1 | 40 | 2 |
| M-6 | 135 | 18 | 15 | M8×1 | 60 | 2 |
| M-7 | 155 | 18 | 15 | M8×1 | 60 | 2 |
| M-8 | 175 | 18 | 15 | M8×1 | 60 | 2 |
| M-1A | 40 | 22 | 22 | M10×1 | — | 1 |
| M-2A | 65 | 22 | 22 | M10×1 | — | 1 |
| M-3A | 90 | 22 | 22 | M10×1 | 50 | 2 |
| M-4A | 115 | 22 | 22 | M10×1 | 50 | 2 |
Straight connectors
| Model | Tube | Thread D |
|---|---|---|
| FSC-4/M6×1 | 4 mm OD | M6×1 |
| FSC-4T/M8×1* | 4 mm OD | M8×1 |
| FSC-4/M10×1 | 4 mm OD | M10×1 |
| FSC-4T/1/8" BSP* | 4 mm OD | 1/8" BSP |
| FSC-4T/1/4" BSP* | 4 mm OD | 1/4" BSP |
| FSC-6/M6×1 | 6 mm OD | M6×1 |
| FSC-6/M8×1 | 6 mm OD | M8×1 |
| FSC-6T/M10×1* | 6 mm OD | M10×1 |
| FSC-6/1/8" BSP | 6 mm OD | 1/8" BSP |
| FSC-6/1/4" BSP | 6 mm OD | 1/4" BSP |
*Taper thread. Elbows FE-4T / FE-6T in the same thread sizes. Banjo FB-4 and FB-6 in M6, M8, M10, 1/8" and 1/4" BSP.
Manual grease pumps
| Model | Reservoir | Discharge | Max. pressure |
|---|---|---|---|
| MGP-500-3 | 0.5 kg | 3 g/stroke | 70 kg/cm² |
| MGP-1000-4 | 1.0 kg | 4 g/stroke | 100 kg/cm² |
| MGP-1500-6 | 1.5 kg | 6 g/stroke | 120 kg/cm² |
Multiline radial lubricator
Delivery 200 kg/cm² max. Dose 0.05–0.25 cc/stroke/pump (max 5 g/min). Reduction 70:1. 3-phase 415V 4-pole motors.
| Model | Reservoir kg | Outlets | Motor |
|---|---|---|---|
| RL-1.5-4 | 1.5 | 4 | 0.25 HP |
| RL-5-6 | 5 | 6 | 0.25 HP |
| RL-15-12 | 15 | 12 | 0.50 HP |
| RL-30-20 | 30 | 20 | 1.00 HP |
| RL-70-30 | 70 | 30 | 1.50 HP |
Dual line grease
| Model | Reservoir | Max. discharge | Pressure | Grease |
|---|---|---|---|---|
| DGL-30 | 30 kg | 250 g/min | 250 kg/cm² | NLGI I / II |
| DGL-50 | 50 kg | 250 g/min | 250 kg/cm² | NLGI I / II |
| DGL-70 | 70 kg | 250 g/min | 250 kg/cm² | NLGI I / II |
| DGL-100 | 100 kg | 250 g/min | 250 kg/cm² | NLGI I / II |
Mobile grease filling
| Model | Type | Capacity | Discharge | Max. pressure |
|---|---|---|---|---|
| HGS-5 | Hand | 5 kg | 8 g/stroke | 100 kg/cm² |
| HGS-10 | Hand | 10 kg | 10 g/stroke | 125 kg/cm² |
| HGS-20 | Hand | 20 kg | 10 g/stroke | 150 kg/cm² |
| GFS-25 | Air, trolley | 25 kg | 300–400 g/min | 125 kg/cm² |
| GFS-50 | Air, trolley | 50 kg | 300–400 g/min | 125 kg/cm² |
| GFS-200 | Air, drum | 200 kg drum | 300–400 g/min | 150 kg/cm² |
Hose and grease adapter / gun included as listed. GFS-200 drum is not part of supply. Air input on GFS-200: 5–7 kg/cm².
